Summary0004503: Dimension between 2 concentric circles

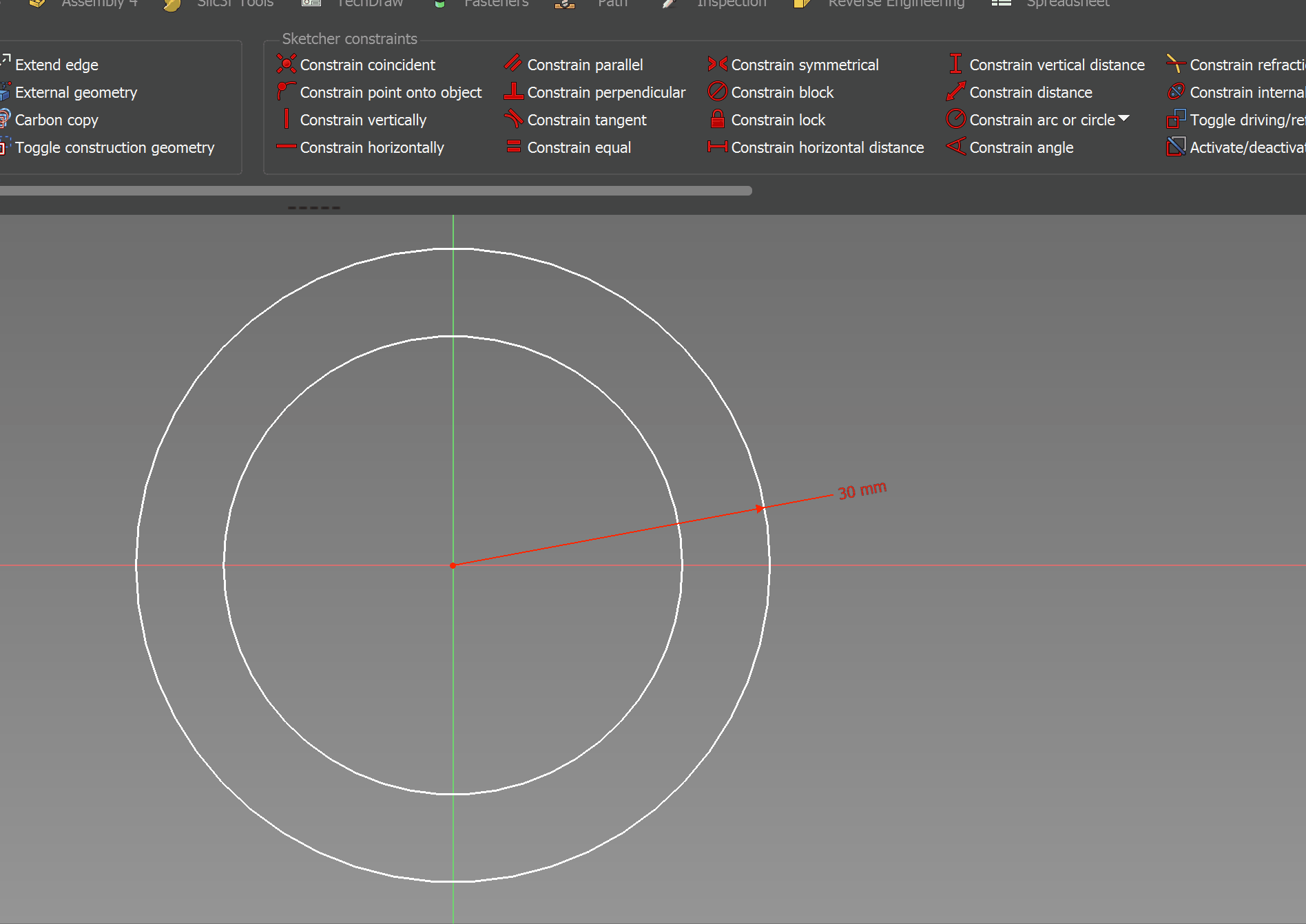

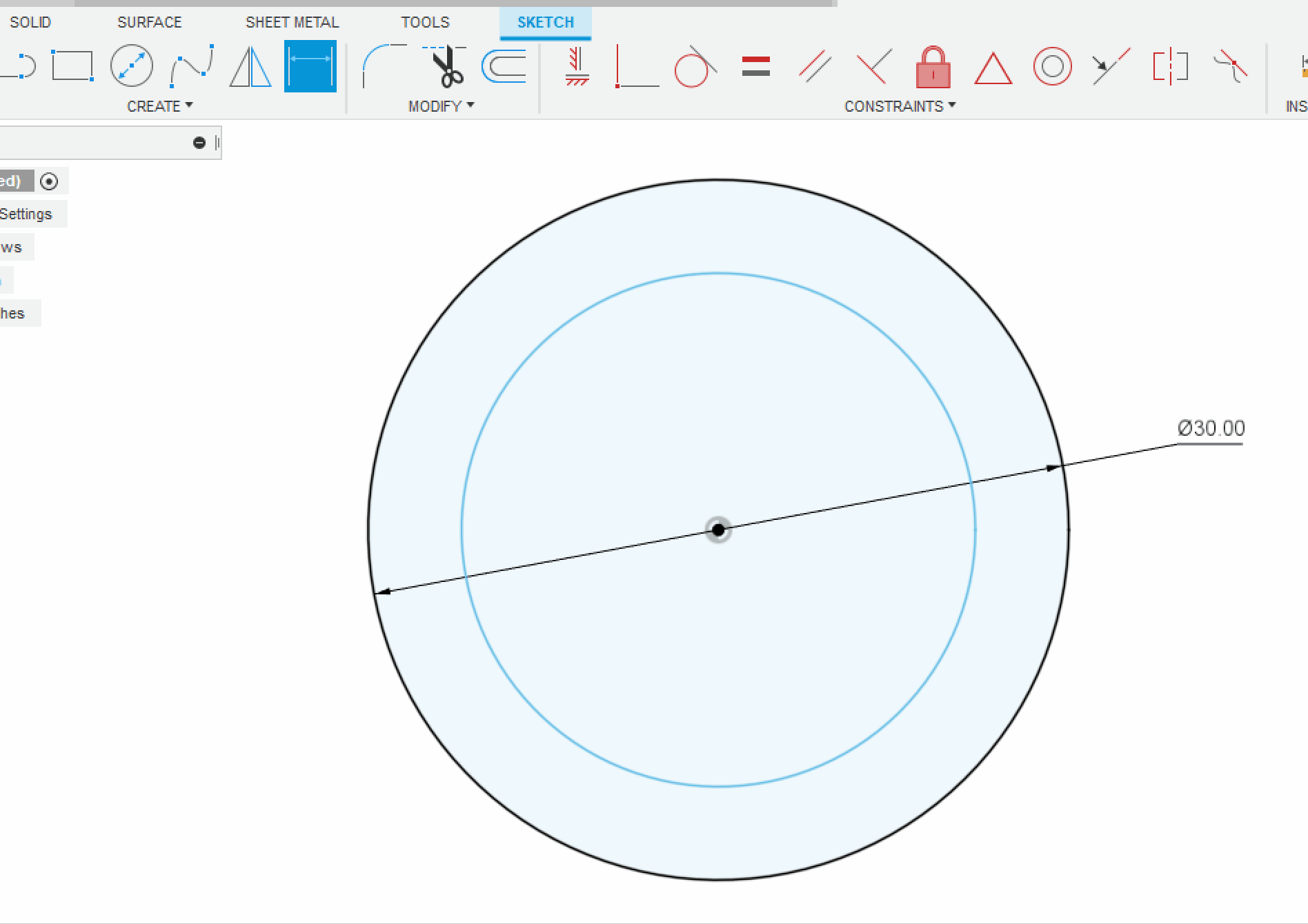

DescriptionRequest is a method on how to add a dimensional constrain between 2 concentric circles. This is closely related to the requested offset feature. See added gif for how it is currently done in Fusion360 and how it is done in Freecan 0.19

See forum topic:
https://forum.freecadweb.org/viewtopic.php?p=450998#p450998
Tagsconstraints, sketcher
