@yorik perhaps you still have these attachments somewhere (fingers crossed) ? |
|
|
@nikospap perhaps you could find them? 0001240:0009782 |
|
|

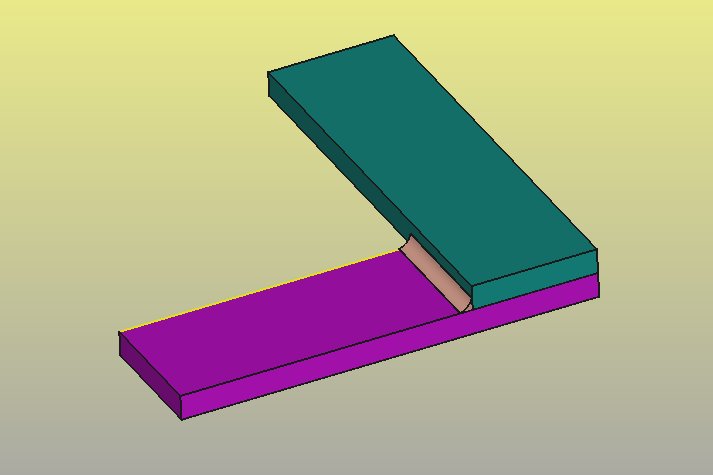

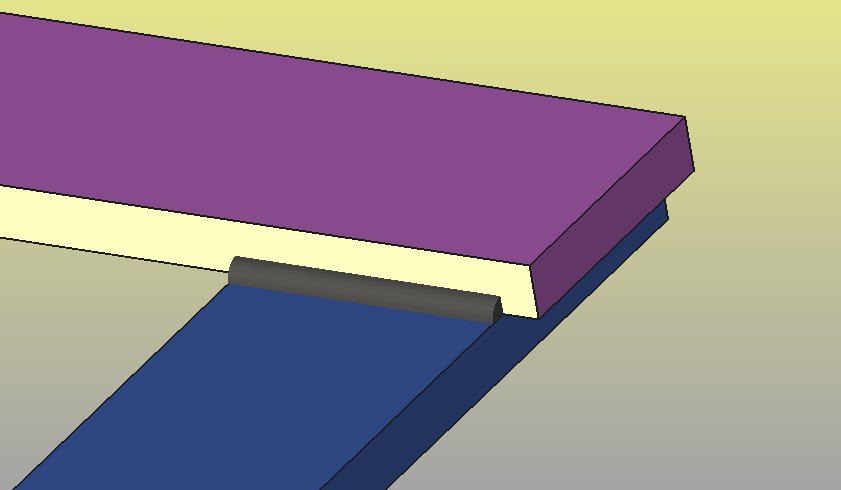

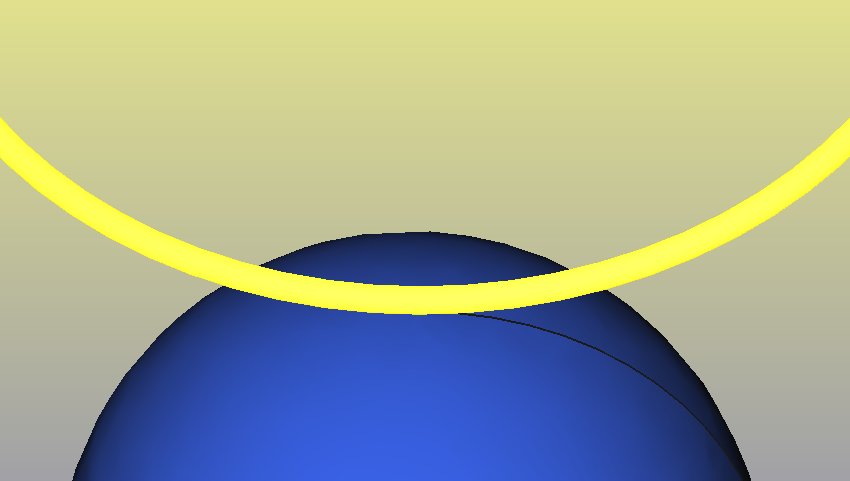

re-uploading attachments weld_001-2.jpg (24,285 bytes) weld_002-2.jpg (27,269 bytes) weld_003-2.jpg (25,644 bytes) |
|
|
After a long time, I found out that there are actually "weld symbols" used in drawings. See... https://yandex.com/images/search?text=weld%20symbols I attach a properties dialog from WeldCAD (a program that is no longer supported, but still available in http://arcworks.lincolnsupport.com/files/wcad3b_inst.exe , according to http://www.weldingdata.com/weldcad/weldcad.html ). Just to get an idea. Of course this is not the same as my initial request. I think that these symbols are "official" and more advanced, used in professional drawings. My suggestion seems to be more suitable for amateur users. weld_004_weld_symbol.jpg (46,821 bytes) |
|
|
Appropriate forum threads:
|
|
|
Adding welding symbols to the TechDraw workbench (TechDraw will replace the Drawing workbench which is no longer developed) is a matter for a different but linked report. Linked because the weld symbols would need to extract data from the actual weld objects on the 3D model. |
|
|
Thanks @normandc for your comment. Do you mind opening and linking said report? |
|
|
Related: 'Simulated Weld' in the FC User Showcase subforum |
|
|
@wandererfan should I move this to Techdraw based on what NormandC wrote in 0001240:0009873 ? (and rename the issue?) |
|
|
@Kunda1 symbols on drawings would be TD, but if the welds are to be modelled then that would not be TD. Ultimate solution probably needs both, so I would leave things as they are. caveat: IANAW (I Am Not a Welder) |
|
|
But if you had to choose between the two methods, you should choose the professional symbols. Simply because they must be more well though, and more thoroughly tested. |
|
|
@reox writes in https://forum.freecadweb.org/viewtopic.php?f=35&t=34990&p=297616#p294888
|
|
|
Welding Symbol Testing Help - https://forum.freecadweb.org/viewtopic.php?f=35&t=38560 |
|
|
This ticket has been migrated to GitHub as issue 5571. |
