Summary0003269: Draft from Loft doesn't work.

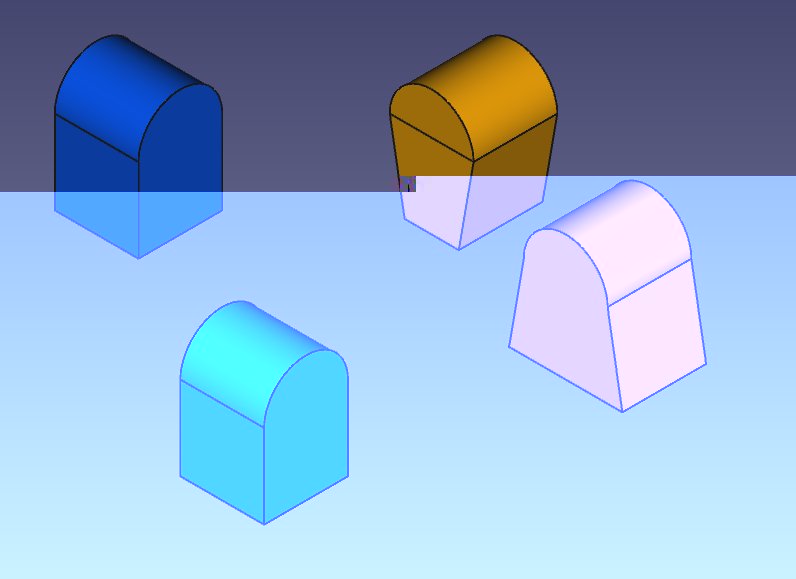

DescriptionDespite I have same shapes, I've got some troubles with Draft in V0.17:
Draft from a Loft doesn't work.
Draft seem to be inverted either its born from a cube or a refine shape.
FreeCAD Information



2017-11-22 20:15


draft1.FCStd (50,229 bytes)


2017-11-24 09:54

administrator   ~0010460

@GlouGlou please post full version info and also link to forum thread discussing this issue. Thanks.


2017-11-25 09:29

reporter   ~0010468

Sorry first tracking ;-)

OS: Windows 8.1
Word size of OS: 64-bit
Word size of FreeCAD: 64-bit
Version: 0.17.12619 (Git)
Build type: Release
Branch: master
Hash: b3631e134be8bfade0534f2dc0ee668ae71a223f
Python version: 2.7.8
Qt version: 4.8.7
Coin version: 4.0.0a
OCC version: 7.1.0
Locale: French/France (fr_FR)


2017-11-28 04:41

administrator   ~0010489

Per @bejant
For some reason Loft does not create planer faces between the Sketches - and although planar faces is not the Draft problem with curved surfaces, the problem may be in the faces Loft does create.
