Summary	0004277: Result of Part:Cut operation is distorted.

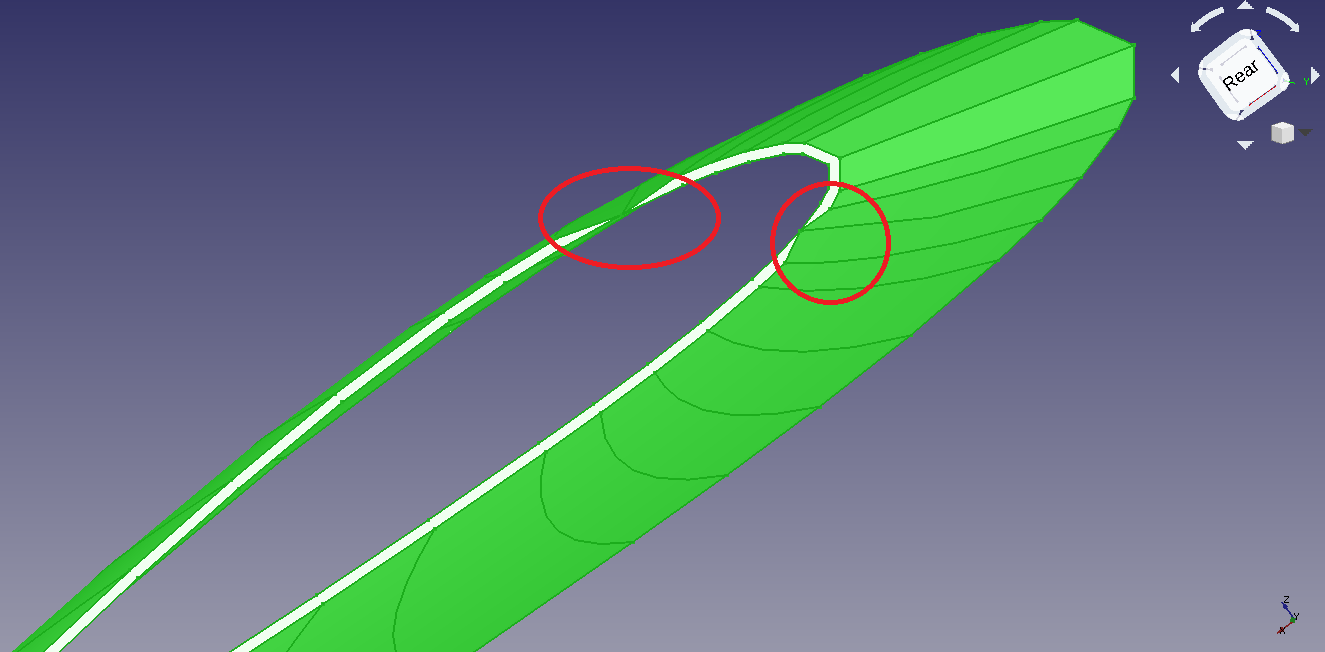

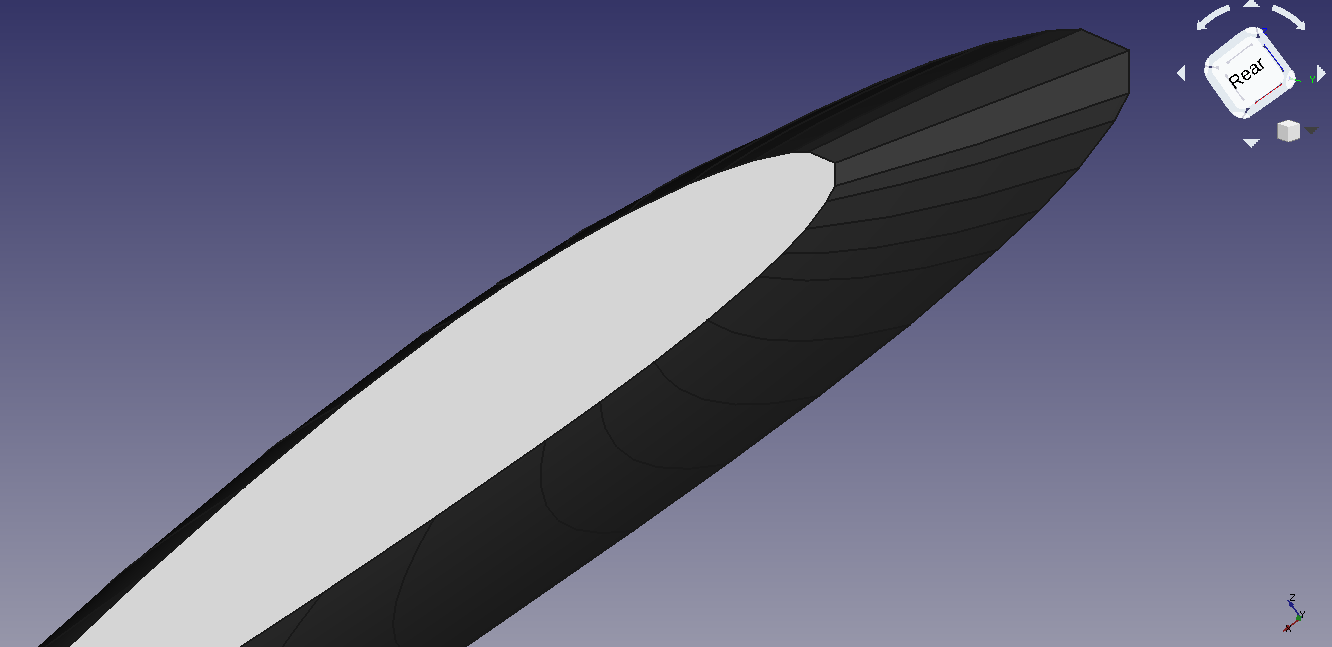

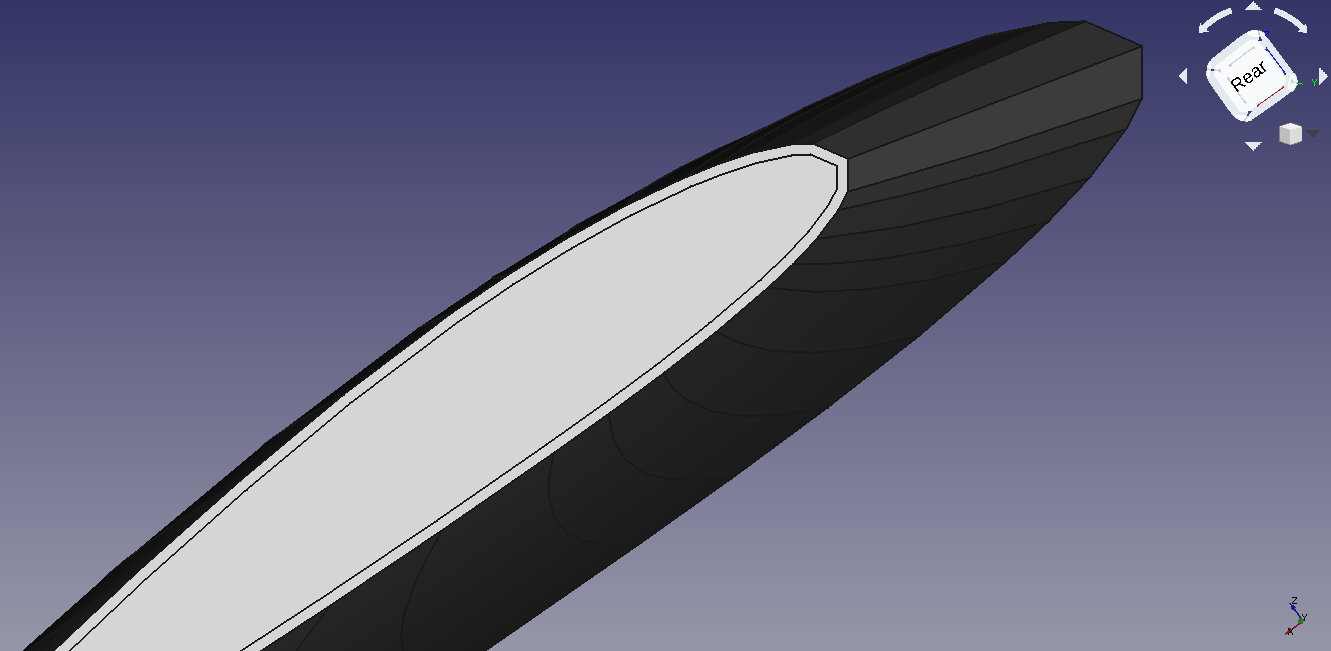

Description	The cut operation of two lofts make unexpected result. The resulting object doesn't keeps outside shape of original sub-components. Lofts are created from multiple sketches. It looks that some points (2 in my case) of the original outside object are replaced by points from inside (subtracted) space.
Steps To Reproduce	1. Start the FreeCAD 2. Open attached file (Jak9-WingTip.fcstd) 3. Select the Part workbench 4. Make a Cut of two shapes: (WingEndOuter - WingEndInner) 5. Check resulting object on the thinnest (higher Y coord) side for distortion
Additional Information	--- All error messages --- XmbTextListToTextProperty result code -2 OpenGL version is: 3.1 (3.1 Mesa 19.2.8) XmbTextListToTextProperty result code -2 XmbTextListToTextProperty result code -2 Run Gui init script Init: Running FreeCADGuiInit.py start script... Init: Searching modules... Init: Initializing /tmp/.mount_FreeCAwYY4OR/usr/Mod/AddonManager... done Init: Initializing /tmp/.mount_FreeCAwYY4OR/usr/Mod/Arch... done Init: Initializing /tmp/.mount_FreeCAwYY4OR/usr/Mod/Complete... done Init: Initializing /tmp/.mount_FreeCAwYY4OR/usr/Mod/Draft... done Init: Initializing /tmp/.mount_FreeCAwYY4OR/usr/Mod/Drawing... done Init: Initializing /tmp/.mount_FreeCAwYY4OR/usr/Mod/Fem... done Init: Initializing /tmp/.mount_FreeCAwYY4OR/usr/Mod/Idf(InitGui.py not found)... ignore Init: Initializing /tmp/.mount_FreeCAwYY4OR/usr/Mod/Image... done Init: Initializing /tmp/.mount_FreeCAwYY4OR/usr/Mod/Import... done Init: Initializing /tmp/.mount_FreeCAwYY4OR/usr/Mod/Inspection... done Init: Initializing /tmp/.mount_FreeCAwYY4OR/usr/Mod/Material... done Init: Initializing /tmp/.mount_FreeCAwYY4OR/usr/Mod/Measure(InitGui.py not found)... ignore Init: Initializing /tmp/.mount_FreeCAwYY4OR/usr/Mod/Mesh... done Init: Initializing /tmp/.mount_FreeCAwYY4OR/usr/Mod/MeshPart... done Init: Initializing /tmp/.mount_FreeCAwYY4OR/usr/Mod/OpenSCAD... done Init: Initializing /tmp/.mount_FreeCAwYY4OR/usr/Mod/Part... done Init: Initializing /tmp/.mount_FreeCAwYY4OR/usr/Mod/PartDesign... done Init: Initializing /tmp/.mount_FreeCAwYY4OR/usr/Mod/Path... done Init: Initializing /tmp/.mount_FreeCAwYY4OR/usr/Mod/Points... done Init: Initializing /tmp/.mount_FreeCAwYY4OR/usr/Mod/Raytracing... done Init: Initializing /tmp/.mount_FreeCAwYY4OR/usr/Mod/ReverseEngineering... done Init: Initializing /tmp/.mount_FreeCAwYY4OR/usr/Mod/Robot... done Init: Initializing /tmp/.mount_FreeCAwYY4OR/usr/Mod/Show(InitGui.py not found)... ignore Init: Initializing /tmp/.mount_FreeCAwYY4OR/usr/Mod/Sketcher... done Init: Initializing /tmp/.mount_FreeCAwYY4OR/usr/Mod/Spreadsheet... done Init: Initializing /tmp/.mount_FreeCAwYY4OR/usr/Mod/Start... done Init: Initializing /tmp/.mount_FreeCAwYY4OR/usr/Mod/Surface... done Init: Initializing /tmp/.mount_FreeCAwYY4OR/usr/Mod/TechDraw... done Init: Initializing /tmp/.mount_FreeCAwYY4OR/usr/Mod/Test... done Init: Initializing /tmp/.mount_FreeCAwYY4OR/usr/Mod/Tux... done Init: Initializing /tmp/.mount_FreeCAwYY4OR/usr/Mod/Web... done Init: Initializing /home/david/.FreeCAD/Mod/Plot(InitGui.py not found)... ignore Module: Part Loading Part module... done Init: Initializing /home/david/.FreeCAD/Mod/CfdOF... done Init: Initializing freecad.plot Init: Initializing freecad.plot... done Init: Initializing freecad.pip Init: Initializing freecad.pip... done Init: Loading FreeCAD GUI Init: Running FreeCADGuiInit.py start script... done XmbTextListToTextProperty result code -2 XmbTextListToTextProperty result code -2 XmbTextListToTextProperty result code -2 Init: Activating default workbench StartWorkbench Loading GUI of Web module... done Loading GUI of Start module... done Loading Start module... done Init: Showing main window Main window restored Show main window Toolbars restored Init: Entering event loop Init: Processing command line files XmbTextListToTextProperty result code -2 XmbTextListToTextProperty result code -2 XmbTextListToTextProperty result code -2 XmbTextListToTextProperty result code -2 XmbTextListToTextProperty result code -2 XmbTextListToTextProperty result code -2 XmbTextListToTextProperty result code -2 XmbTextListToTextProperty result code -2 Loading Sketcher module... done Loading GUI of Part module... done Loading GUI of Sketcher module... done XmbTextListToTextProperty result code -2 XmbTextListToTextProperty result code -2 XmbTextListToTextProperty result code -2 XmbTextListToTextProperty result code -2 XmbTextListToTextProperty result code -2 XmbTextListToTextProperty result code -2 XmbTextListToTextProperty result code -2 XmbTextListToTextProperty result code -2 Save AutoRecovery file: Needed time: 25ms Save AutoRecovery file: Needed time: 0ms Save AutoRecovery file: Needed time: 0ms Save AutoRecovery file: Needed time: 0ms Save AutoRecovery file: Needed time: 0ms Save AutoRecovery file: Needed time: 0ms Save AutoRecovery file: Needed time: 0ms XmbTextListToTextProperty result code -2 XmbTextListToTextProperty result code -2 XmbTextListToTextProperty result code -2 XmbTextListToTextProperty result code -2
Tags	No tags attached.

FreeCAD Information	OS: Ubuntu 18.04.4 LTS Word size of OS: 64-bit Word size of FreeCAD: 64-bit Version: 0.18.16146 (Git) AppImage Build type: Release Branch: (HEAD detached at 0.18.4) Hash: 980bf9060e28555fecd9e3462f68ca74007b70f8 Python version: 3.6.7 Qt version: 5.6.2 Coin version: 4.0.0a OCC version: 7.3.0 Locale: English/UnitedStates (en_US)

david254 2020-03-02 13:17 reporter	Jak9-WingTip.fcstd (101,108 bytes) Screenshot_InsideObject.png (29,868 bytes) Screenshot_InsideObject.png (29,868 bytes) Screenshot_OutsideObject.png (29,907 bytes) Screenshot_OutsideObject.png (29,907 bytes) Screenshot_BothSourceObjects.png (31,057 bytes) Screenshot_BothSourceObjects.png (31,057 bytes) Screenshot_ResultingCutObject.png (40,261 bytes) Screenshot_ResultingCutObject.png (40,261 bytes)

Genues 2020-03-02 14:14 reporter ~0014197	Confirmed for me `OS: Arch Linux (XFCE/xfce) Word size of OS: 64-bit Word size of FreeCAD: 64-bit Version: 0.19.19758 (Git) AppImage Build type: Release Branch: master Hash: c165edd52c7f06ac09f992e5b5bf1d37661a8c0f Python version: 3.8.2 Qt version: 5.12.5 Coin version: 4.0.0 OCC version: 7.4.0 Locale: Russian/Russia (ru_RU)`

openBrain 2020-03-03 15:27 developer ~0014202	@david254 : sorry but this is just EBKAC. ;) In the properties of the 'Cut' (Property editor -> View tab), just adjust deflection and deviation to something more appropriate to the scale you're working on (eg. Angular deflection = 1 / Deviation = 0.05). Then recompute & everything is fine. This is typically case why our guidelines require that you first open a topic on our forum so community can confirm it's a bug before you open a ticket. ;)

Genues 2020-03-04 06:51 reporter ~0014204	@openBrain it not work. screen1.png (228,065 bytes) screen1.png (228,065 bytes)

chrisb 2020-03-04 12:37 developer ~0014205	Recompute fixes the issue. OS: macOS High Sierra (10.13) Word size of OS: 64-bit Word size of FreeCAD: 64-bit Version: 0.19.19717 (Git) Build type: Release Branch: master Hash: 43e6be9020199e6453653e1b041679679efee574 Python version: 3.8.1 Qt version: 5.12.5 Coin version: 4.0.0 OCC version: 7.4.0 Locale: C/Default (C)
