Summary0004317: Draft grid visible through an arch wall

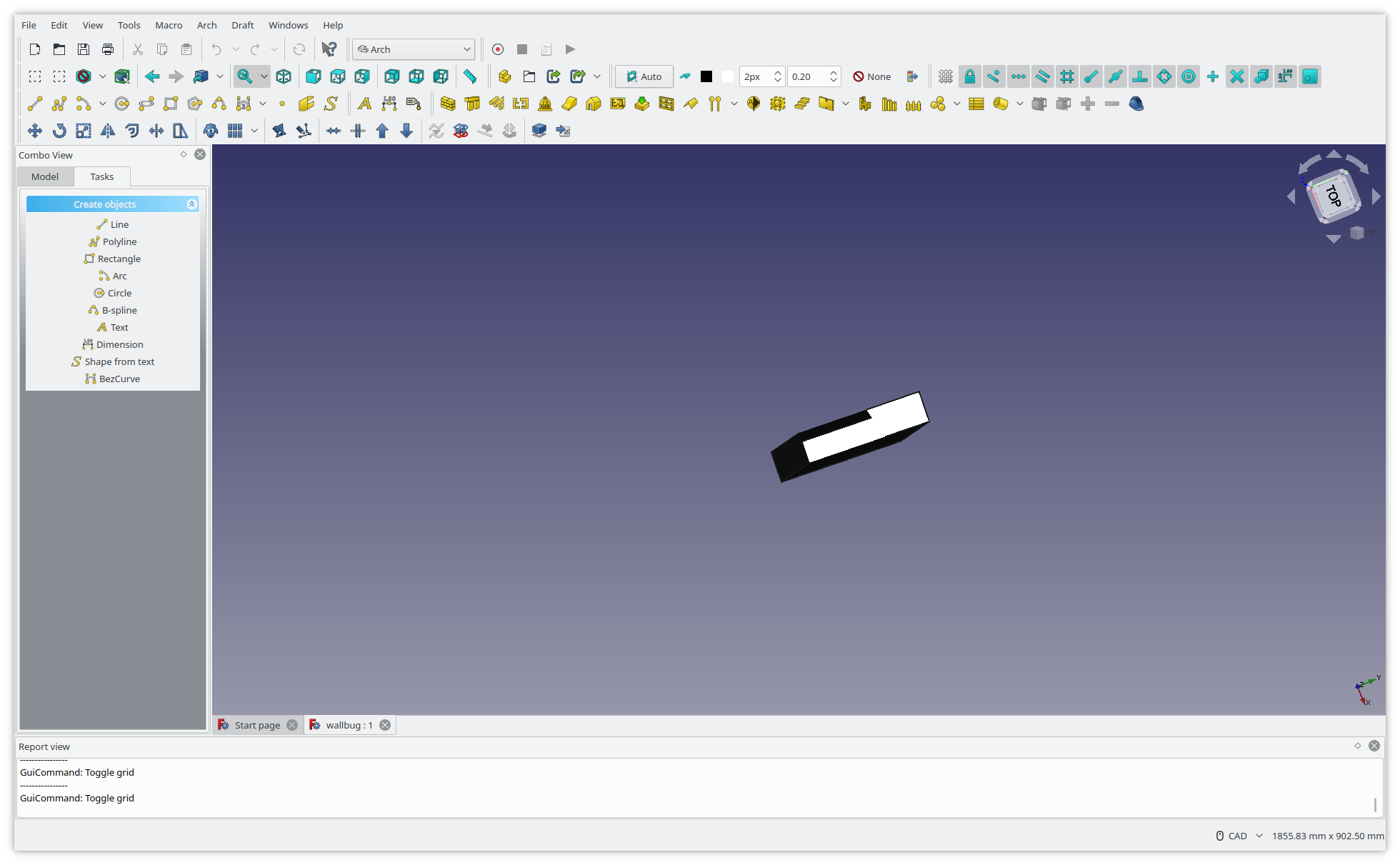

DescriptionSee the attached screenshot wallbug.png. When looking at an arch wall from the top, the top of the wall appears "open" and you can see the draft grid through it.

The problem seems to occur only if grid spacing is below 5mm. The smaller the spacing is, the larger area of the grid can be seen through the wall.

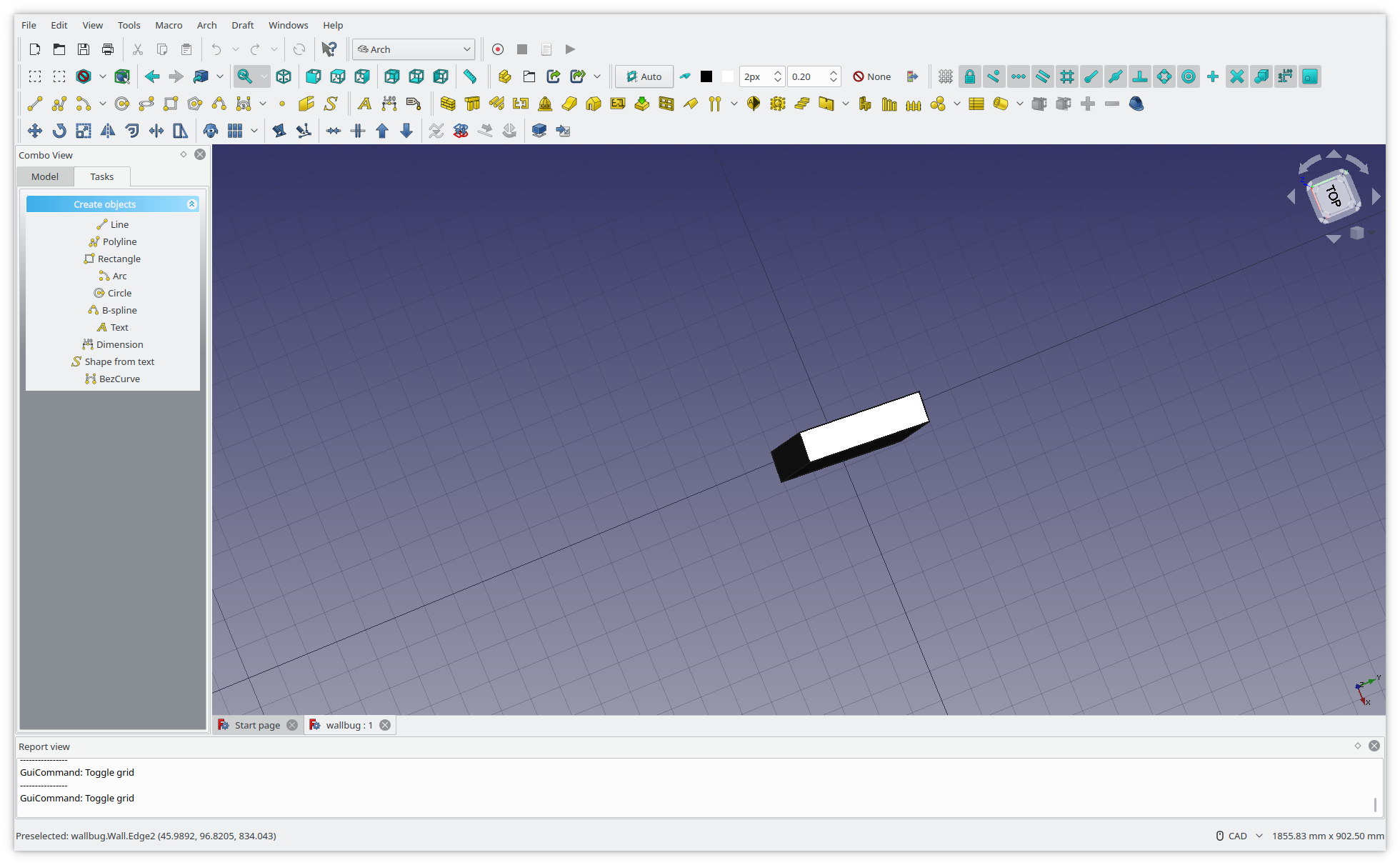

If spacing is 5mm or larger, as in the screenshot wallbug_grid_50mm.png, the wall looks normal to me.

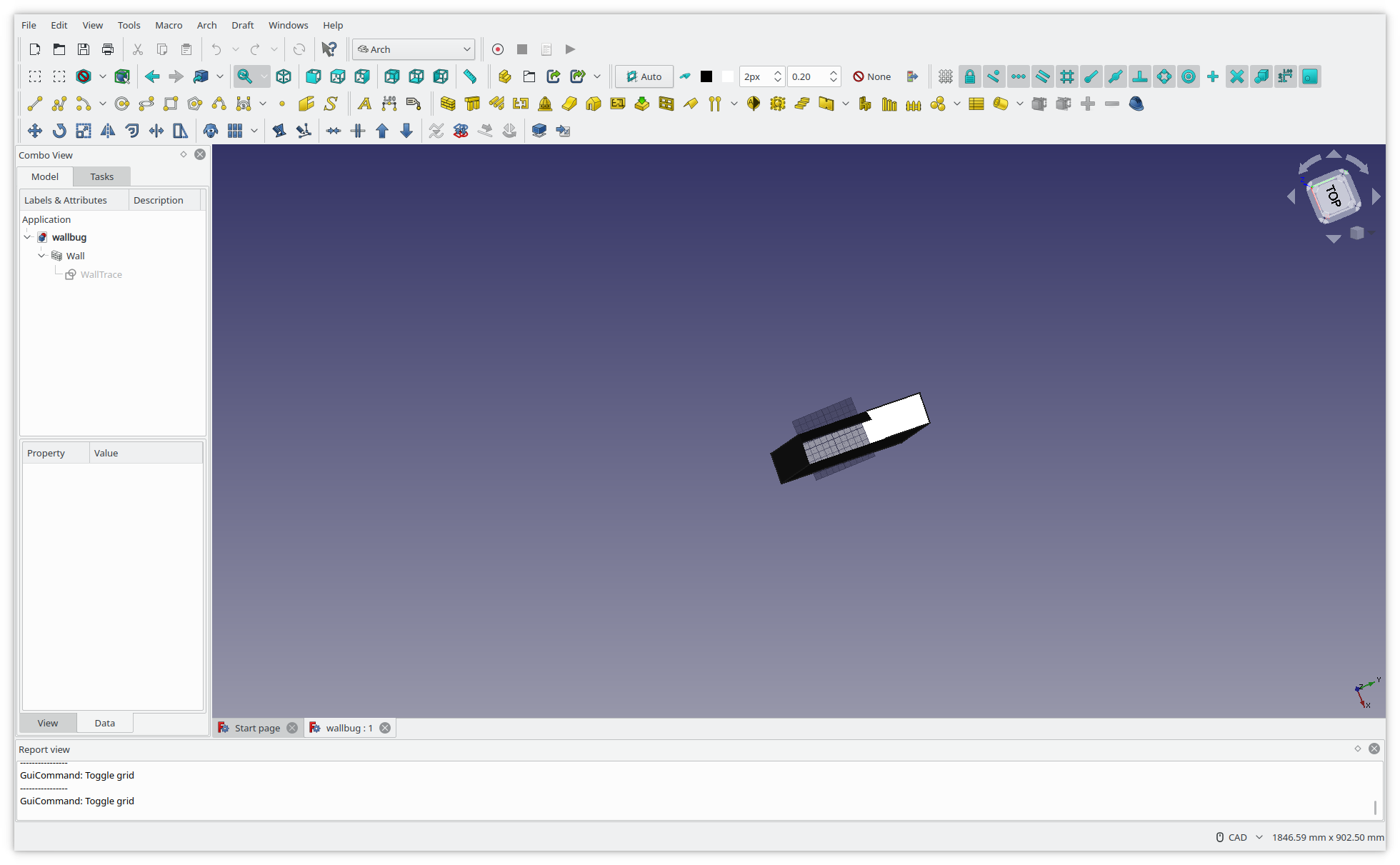

If I turn the grid off, a black area appears on top of the wall as seen in the screenshot wallbug_grid_off.png
Steps To Reproduce- Use FreeCAD version from git shown in the section FreeCAD information.
- Ensure the grid settings are "factory default".
- Select Arch workbench.
- Load the attached wallbug.FCStd file.
- Make the grid visible (for me the grid is not always visible at first even though I believe it is "on" - I have to turn if off first and then back on).
- Try changing the grid spacing and turning the grid off.
Tags#pending-forum
FreeCAD InformationOS: Ubuntu 19.10 (KDE/plasma)
Word size of OS: 64-bit
Word size of FreeCAD: 64-bit
Version: 0.19.20634 (Git)
Build type: Debug
Branch: master
Hash: ba34cc6a96c15d64224e8f0c8b5da874f1e03a07
Python version: 3.7.5
Qt version: 5.12.4
Coin version: 4.0.0a
OCC version: 7.3.0
Locale: English/United States (en_US)

Activities

azure

2020-04-18 23:29

reporter

wallbug.FCStd (8,805 bytes)

openBrain

2020-04-19 09:46

developer   ~0014359

@azure : when encountering issue with FreeCAD, please process according our reporting guidelines by first opening a topic in our forum.
Here looks like a graphical issue. Does the problem vanish if you select 'Fit all' view ?

Kunda1

2020-04-25 14:04

administrator   ~0014377

@azure please follow-up by posting a thread to the forum and posting the URL here.

Kunda1

2020-06-07 14:23

administrator   ~0014500

@azure ping

mikeprice99

2020-07-22 19:26

reporter   ~0014678

I occasionally dive in to see if I can help with a bug/issue. I've looked at the sample file for this bug: the "Walltrace" is for a wall 50mm long, 3m high and 200mm thick - and I can't reproduce the 'error'. I wouldn't expect a reasonable interpretation.

Kunda1

2020-09-10 14:54

administrator   ~0014733

Last edited: 2020-09-10 14:55

 Thanks @mikeprice99. Appreciate any help triaging that you'd offer :)
I'll open a thread on the forum for this since OP ( @azure ) hasn't responded.

Edit: forum thread: https://forum.freecadweb.org/viewtopic.php?f=23&t=50121

yorik

2022-03-03 13:55

administrator   ~0016882

This ticket has been migrated to GitHub as issue 6048.
