0004527TechDrawBugpublic2021-01-02 14:442022-01-25 12:53
ReporterRoeland Huys Assigned To
PrioritynormalSeverityminorReproducibilityalways
Status feedbackResolutionopen
PlatformmacOSOS VersionBig Sur
Target Version0.20
Summary0004527: TechDraw page layout screwing up
DescriptionAfter deleting a dimension, the layout of the drawing page screws up.
I use MacOS Big Sur.
Steps To ReproduceCreate a new page using TechDraw toolbox
Insert Multiple linked views of drawable objects
Set scale to 0.5

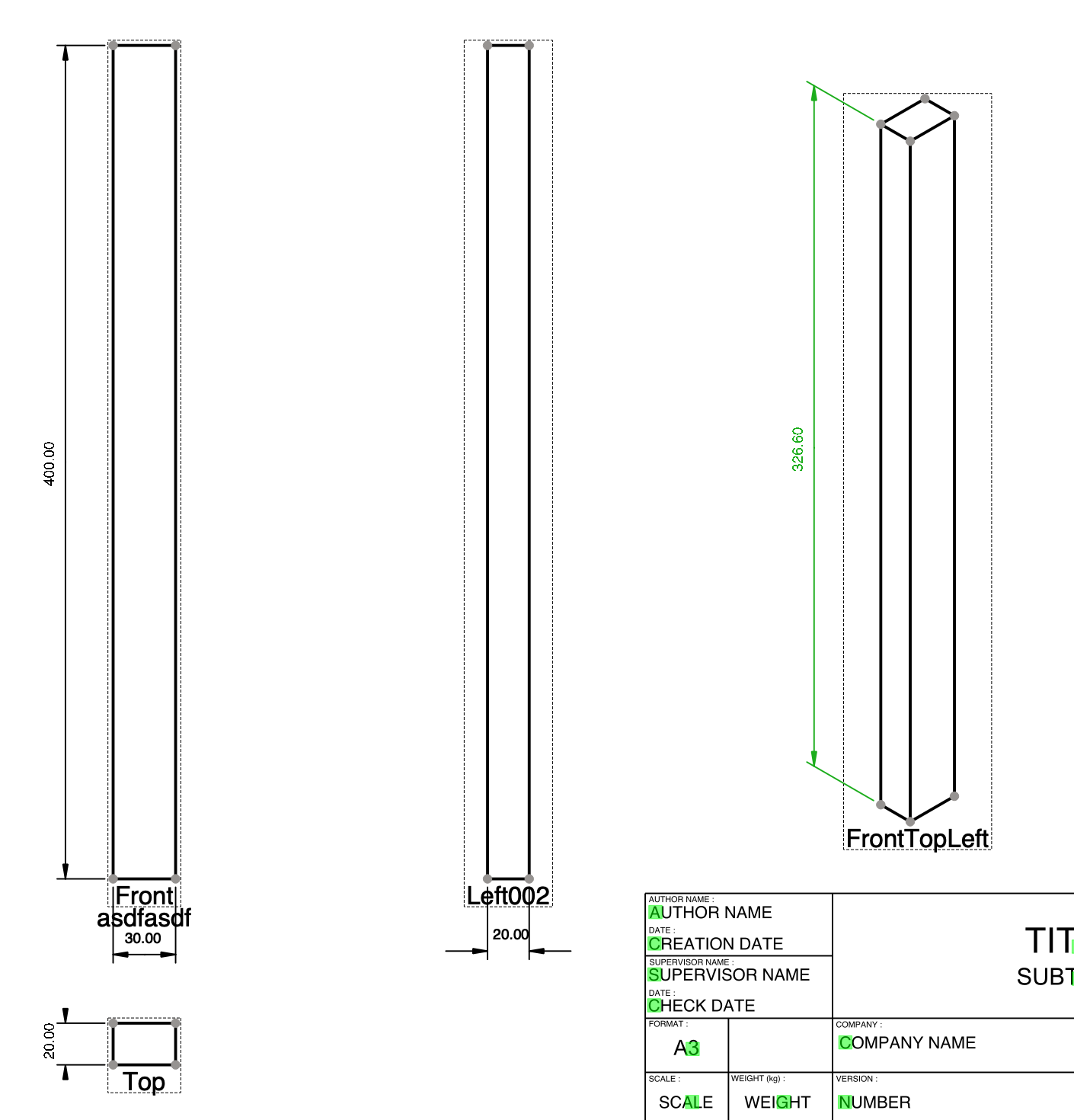

Arrange the views in a convenient way
Add dimensions
Delete dimension

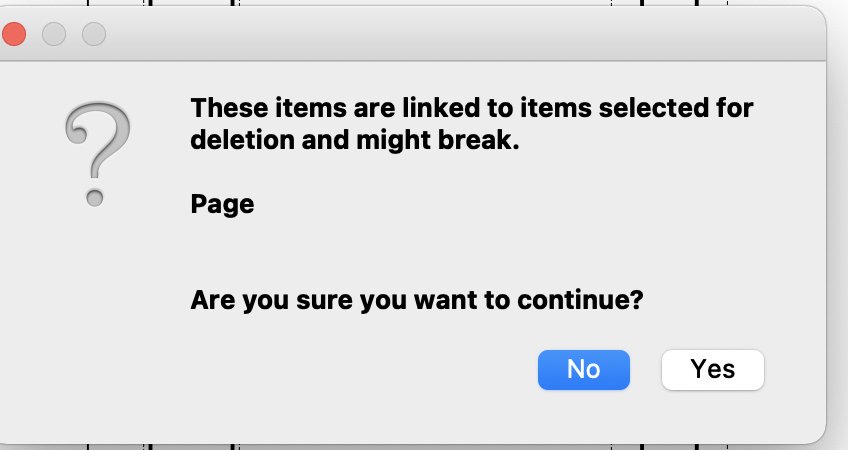

-> Message: "These items are linked to items selected for deletion and might break. Page"
Click OK

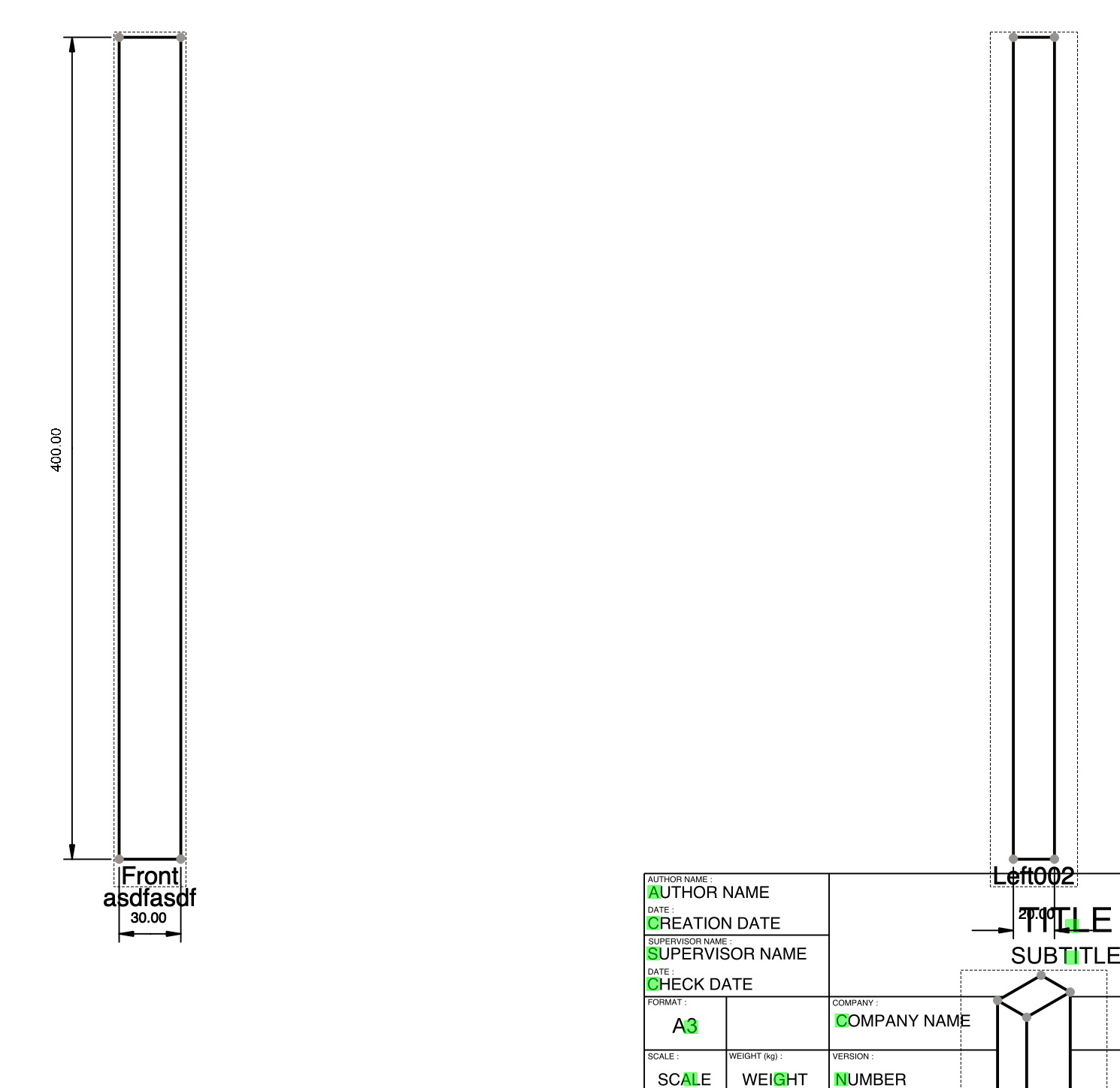

Observe how all views are messed up.
Tags#pending-forum, #tobeclosed, macOS
FreeCAD Information<!--ATTENTION:
COMPLETELY ERASE THIS AFTER PASTING YOUR
Help > About FreeCAD > Copy to clipboard
NOTE: just the snippet alone will do without anything else included.
The ticket will not be submitted without it.
-->

Activities

Roeland Huys

2021-01-02 14:44

reporter


Kunda1

2021-01-31 12:05

administrator   ~0015241

Please post to the forum next time. Please paste your full About info in the FreeCAD Information field next time. Please open a forum thread to discuss this issue.

Kunda1

2022-01-24 20:36

administrator   ~0016282

Forum thread: https://forum.freecadweb.org/viewtopic.php?f=35&t=65637

Kunda1

2022-01-25 12:52

administrator   ~0016286

no file was attached or full version info. OP please respond or we will close ticket very soon

yorik

2022-03-03 13:55

administrator   ~0016978

This ticket has been migrated to GitHub as issue 6146.
