Summary | 0004564: Excessive vertices generated for curved pocket on drawing projection which hangs application | ||||
Description | Generating an XZ projection of the following part in the TechDraw WB results in an excessive number of vertices for the curved cut-out and blocks the UI thread (unresponsive).![]() Original forum post: https://forum.freecadweb.org/viewtopic.php?f=3&t=55489&p=477314#p477264 | ||||

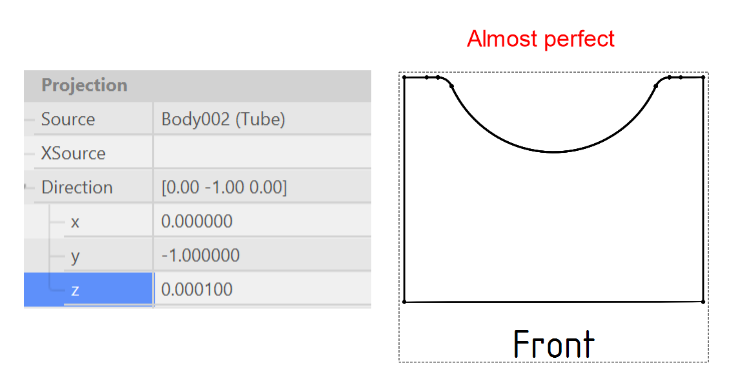

Steps To Reproduce | Open the attached model (Tube.FCStd) Open the drawing page and set the Front projection direction to X0, Y-1, Z0.000000 FreeCAD hangs while generating the view and has an excessive number of vertices when complete. ![]() Set the projection direction to X0, Y-1, Z0.000001 The view is now missing lines. ![]() Set the projection direction to X0, Y-1, Z0.000100 The view is now almost perfect. ![]() | ||||
Tags | No tags attached. | ||||
FreeCAD Information | OS: Windows 10 (10.0) Word size of OS: 64-bit Word size of FreeCAD: 64-bit Version: 0.19.23756 (Git) Build type: Release Branch: master Hash: 9c6e9184930a52b165a0b7274e3a45d1006bfe67 Python version: 3.8.6 Qt version: 5.12.5 Coin version: 4.0.0 OCC version: 7.4.0 Locale: English/United Kingdom (en_GB) | ||||
related to | 0004639 | feedback | TechDraw not drawing all lines in view |
|
Errors while uploading source files. Uploading again. |
|
is there a connection with 4639? Overlapping lines not drawn?? |
|
The missing short lines seem to be a bug in OCCT. The number of vertices is appropriate for the projected BSpline. |
|
Can someone test this in the latest (OCC 7.6) ? |
|
