Summary0001951: Draft workbench preferences snap settings does not use "units" settings
DescriptionIn preferences general select an imperial units. Go to draft workbench then bring preferences up. Select draft->snap settings. Grid spacing is always mm
Tagssnap, units
FreeCAD Information

Relationships

related to 0001950 closed Draft If draft grid space is set to zero then drafting draw tools fail.
related to 0003107 new Sketcher Customize Sketcher units

Activities

Kunda1

2017-01-09 20:00

administrator

Kunda1

2017-01-09 20:01

administrator   ~0007585

Still an issue 0.16
Tested on OS: "Manjaro Linux"
Word size of OS: 64-bit
Word size of FreeCAD: 64-bit
Version: 0.16.Unknown
Build type: Release
Python version: 2.7.12
Qt version: 4.8.7
Coin version: 3.1.3
OCC version: 6.9.1

Kunda1

2017-01-13 00:09

administrator   ~0007698

Devs, this ticket needs to move to the 'Draft' category

Kunda1

2018-01-09 10:34

administrator   ~0010732

Forum thread https://forum.freecadweb.org/viewtopic.php?f=8&t=26277

Kunda1

2018-01-23 19:08

administrator   ~0010834

All Draft/Arch prefs settings are in millimeters still.... Couldn't find out how to use the InputField widget in qt designer yet

yorik

sopwith

2019-01-14 19:49

reporter   ~0012432

I ran into this problem just now with 0.18dev-15619 on Windows Conda build. Kind of hard to draft anything in feet and inches... Bump.

Kunda1

2019-01-29 18:14

administrator   ~0012551

@yorik will this make it in to 0.18 or bumped to 0.19?

yorik

2019-02-15 00:05

administrator   ~0012645

It seems possible already (the sketcher has one), but haven't looked at how they did it yet.. Let's bump it to 0.19

Kunda1

2022-01-23 01:31

administrator   ~0016260

Last edited: 2022-01-23 01:37

@ctjctj can confirm
After setting imperial units I still see:

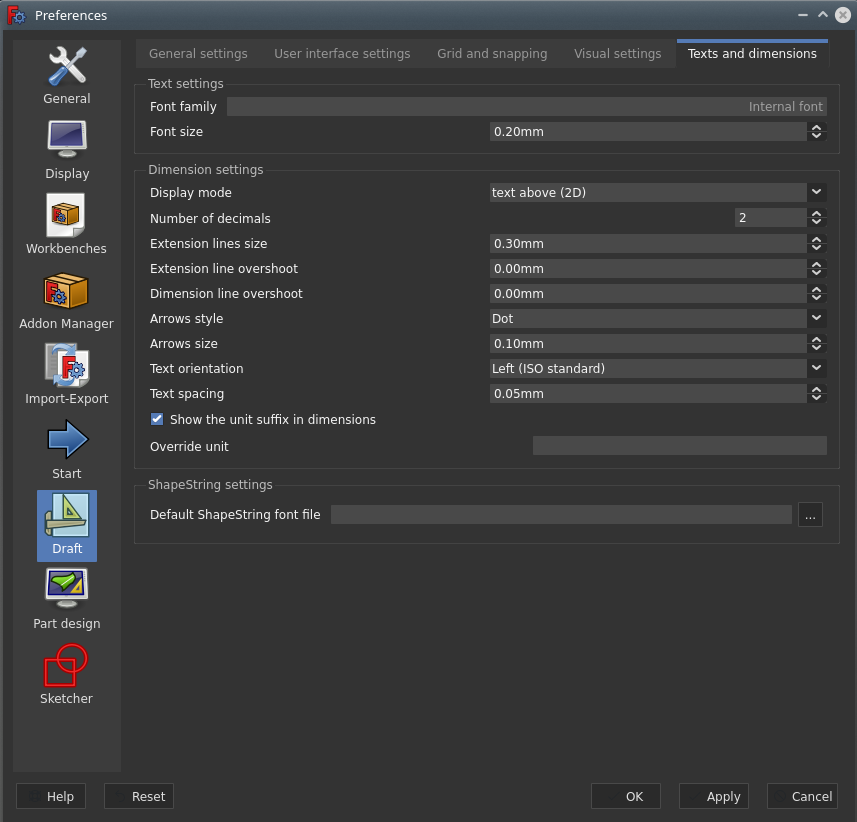

Preferences > Draft > 'Text and Dimensions'
the units for the preferences are in mm


OS: Ubuntu Core 20 (KDE/plasma)
Word size of FreeCAD: 64-bit
Version: 0.20.27148 (Git)
Build type: Release
Branch: master
Hash: 88ded38ca16e38a556e432a651792c56a65fc80d
Python version: 3.8.10
Qt version: 5.15.3
Coin version: 4.0.0
OCC version: 7.5.2
Locale: English/United States (en_US)

Kunda1

2022-01-23 01:34

administrator   ~0016261

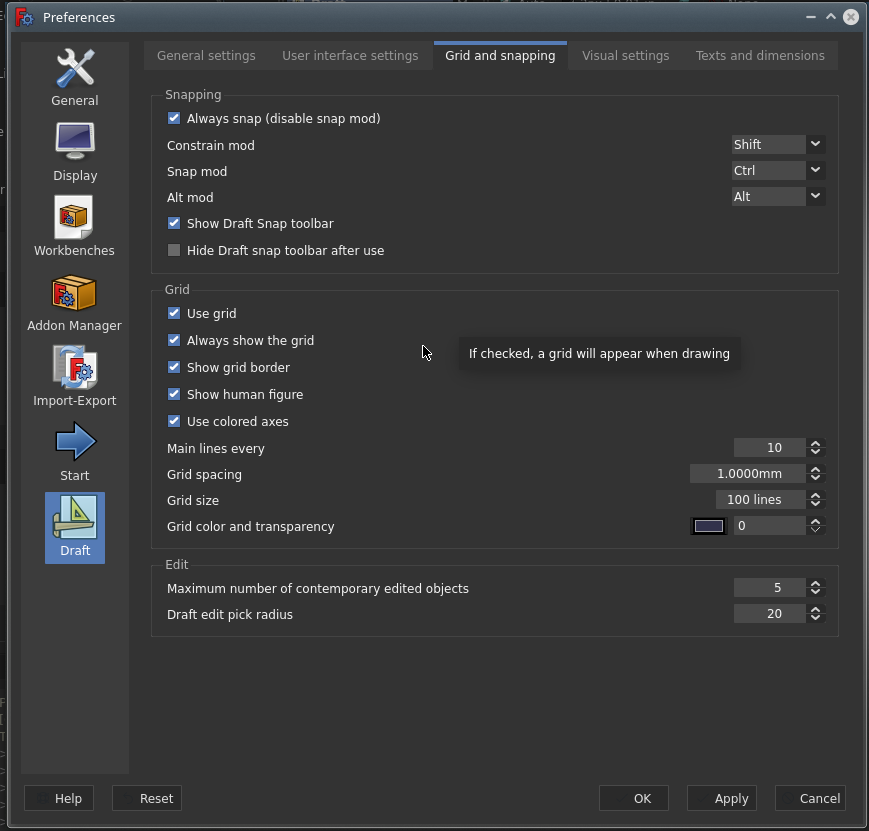

Preferences > Draft > 'Grid and Snapping' also is showing mm units

yorik

2022-03-03 13:55

administrator   ~0016445

This ticket has been migrated to GitHub as issue 5610.
